Simrad Nac-3 Vrf Core Pack Virtual Rudder Feedback
Simrad Nac-3 Vrf Core Pack Virtual Rudder Feedback
Couldn't load pickup availability
Simrad NAC-3 VRF High-current Core Pack
Model: 000-13338-001UPC: 9420024155660
NAC-3 VRF Core Pack: Comprising of the high-current NAC-3 autopilot computer and Precision-9 compass.
The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10 metres (33 feet) or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).
Specifications| Operating temperature | 0 to +55°C |
| protection | IPX7 |
| Electrical | |
| Power supply | 12/24vDC |
| Reversible motor control of rudder | Max continious load 30A, peak 50A for 1s |
| On/off solenoid control of rudder | 12/24V DC, common, load range 10mA to 10A, off current <1mA |
| Engage output for bypass/clutch | 12/24V DC, min 10mA, max 3A |
| NFU port/stbd input and mode indicator output | External open/close contact, common ret, contact current max 30mA |
| Mode input | External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA |
| External alarm output for buzzer/relay | Max 100mA, voltage level as local supply |
| Networking | |
| NMEA 0183 | 1 in 1 out |
| NMEA 2000 | 1 Micro C |

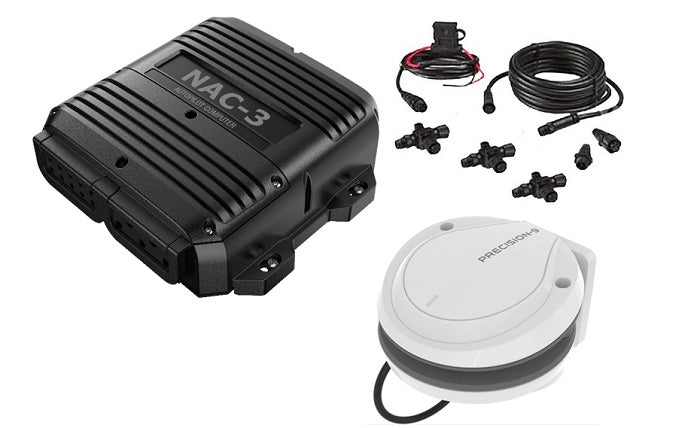

What's in the Box:
- NAC-3 Autopilot Computer
- PRECISION-9 COMPASS
- N2k Backbone Starter Kit
