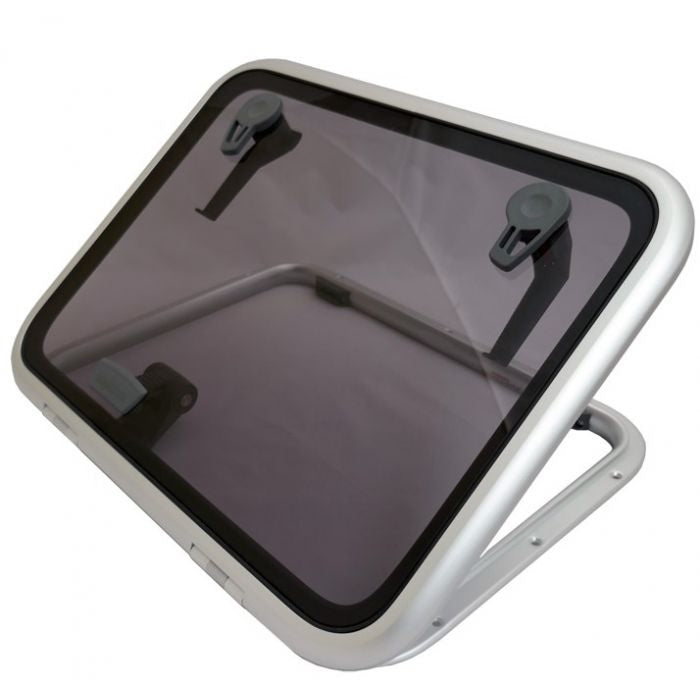

Lewmar Size 50 Low Profile Hatch Flange Base
Lewmar Size 50 Low Profile Hatch Flange Base
Regular price
$893.95
Regular price
Sale price
$893.95
Unit price
per
Couldn't load pickup availability
| Support System | Lower Frame (in) | Acrylic Colour | Hatch Weight (lb) | Acrylic Window Thickness (in) |
| Self Supporting | 9/16 | Smoke Grey | 10.6 | 5/16 |
Dimensions
| Length X (in) | Width Y (in) | Height Z (in) | Radii R (in) | Cut-Out Length X1 (in) | Cut-Out Width Y1 (in) | Cut-Out Radii R1 (in) |
| 17 5/8 | 22 11/16 | 1 | 2 7/8 | 14 13/16 | 19 15/16 | 1 11/16 |
Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use M6 (1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
