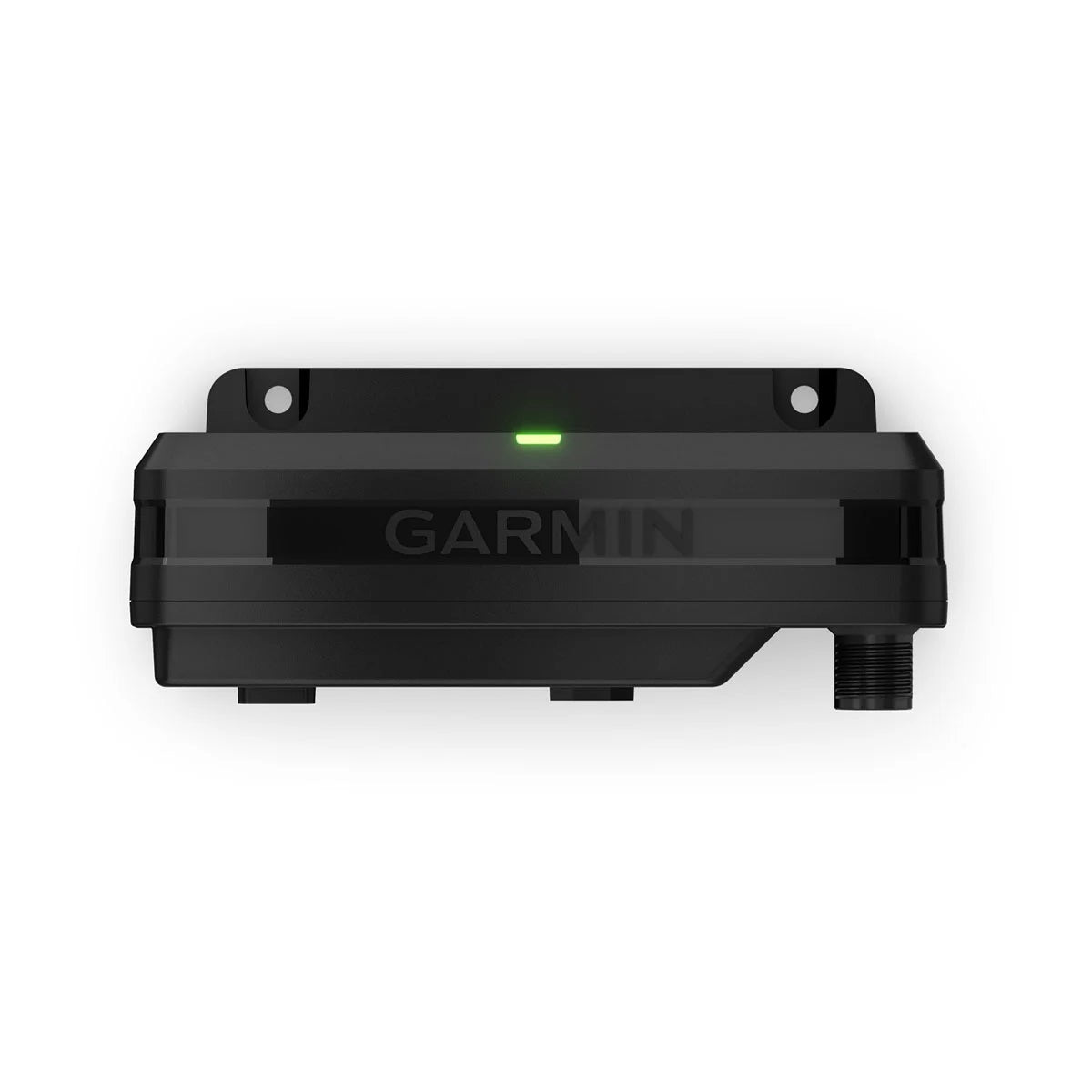

Garmin Spectra™ LC102 LED Control Module
Model: 010-02829-00Control LED lights on your boat from your compatible chartplotter or smartphone with the Garmin Spectra light control module (lights not included). Assign and control different light groups for cup holders, speakers, strip or courtesy lights, and more to create your own vibe.
From bow to stern and everything in between, this module lets you control and set up different light groups and scenes.
Control lights over the NMEA 2000® network with your compatible chartplotter or with the ActiveCaptain® app on your compatible smartphone.
See the beat by syncing the LED lights to the music track with the audio sync feature.
Control LED lighting on Fusion and JL audio boat speakers and subwoofers plus wake tower speakers (sold separately).
Add more lights after the initial install with a scalable system.
Built to withstand the abuse of life on the water (in accordance with IP66/IP67 ratings)
Specifications| General | |
| Unit dimensions (WxHxD) | 4.45"" x 2.05"" x 1.85"" (113 x 52 x 47 mm) |
| Weight | 2.93 oz (83 g) |
| Water rating | IP66/IP67 |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Compass-safe distance | 7.87"" (20 cm) |
| Warranty | 2 years |
| Electrical | |
| Input voltage | 10.8 to 16 V (12 V system) 21.6 to 32 V (24 V system) |
| Input current (max) | 2 amp |
| Output current (max) | 2 A (per output connector) |
| NMEA 2000® LEN | 2 (Less than or Equal to 70 mA) |
| Over voltage protection | yes |
| Over current protection | yes |
| Lighting Features | |
| LED connection types | RGB, RGBW, CRGBW, single channel |
| Lighting modes | Color pick, audio sync (color blend/audio spectrum), effects |
| Premium control and setup via | MFD or ActiveCaptain® app |
| Control via | Fusion Apollo™ Stereo |
What's in the Box:
- Spectra LC102
- Power flying lead with water-resistant three-way connector
- LED flying lead with water-resistant six-way connector
- Tee connector for the NMEA 2000® network
- Backbone/drop cable (0.3 m) for the NMEA 2000® network
- Mounting screws
- Documentation
