Furuno

Furuno Dst810msf Nmea 2000 Airmar Smart Transducer Bronze Thru Hull

Furuno Dst810msf Nmea 2000 Airmar Smart Transducer Bronze Thru Hull

$425.00
$425.00
Sale Sold out

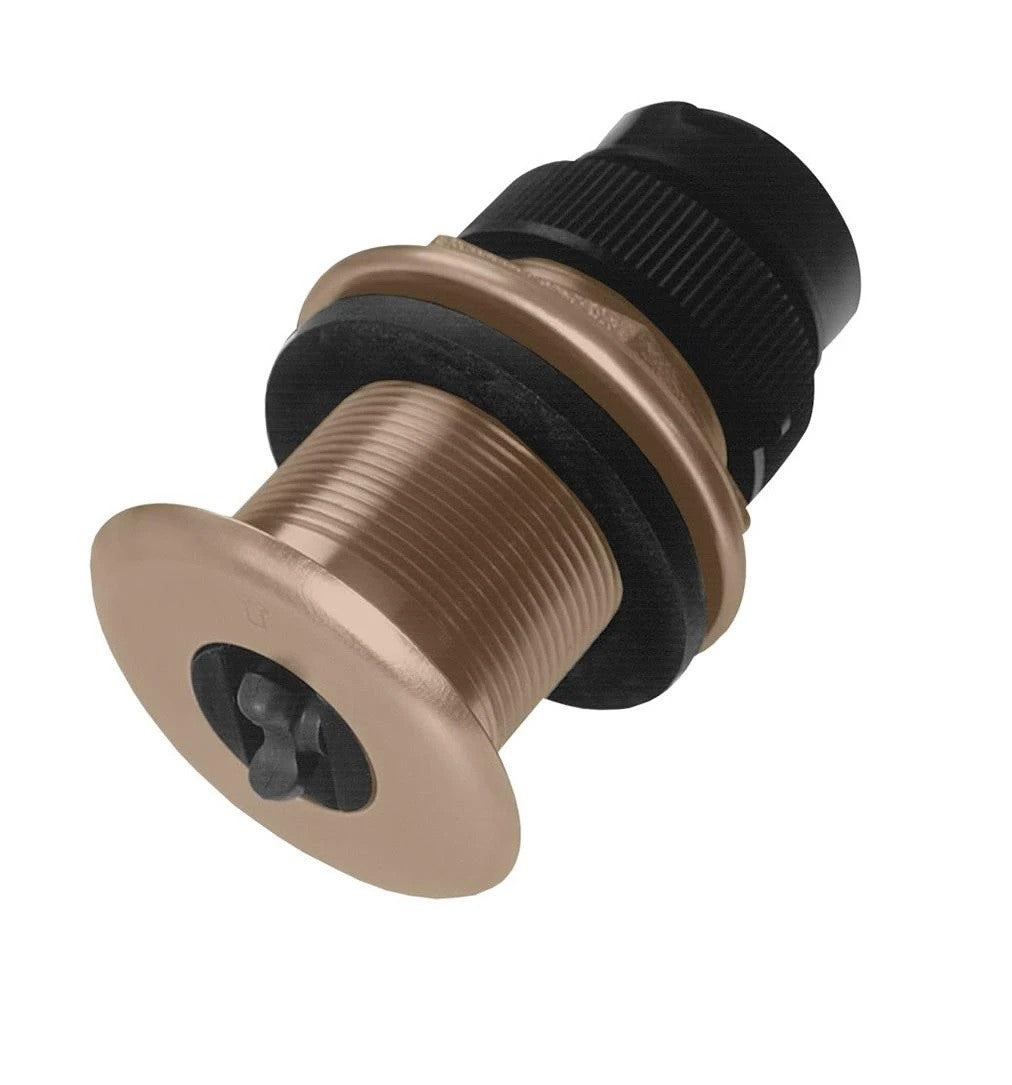

Furuno DST-810 active Depth, Speed, Temperature thru-Hull Bronze 235 kHz transducer.

Model: DST-810MSF
  • 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
  • Integrated attitude sensor for heel and trim benefits sailing and power boats
  • Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
  • DST810 stores configurations and delivers data to the NMEA 2000® network.
  • Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
  • Popular depth sensor for shallow water performance.
Specifications
Acoustic Window Urethane
Hull Deadrise Up to 22°
Data Update Rate Depth 1X/second
Data Update Rate Speed 5X/second
Attitude Accuracy +/— 1° nominal after sensor calibration
Depth Frequency 235 kHz
Minimum Depth Range 0.5 m (1.6')
Maximum Depth Range Up to 100 m (330')—NMEA 2000®
Speed Range Up to 45 knots
Pressure Rating 3 m (10')
Pulse Rate 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
Supply Voltage 9 VDC to 16 VDC—per NMEA 2000
Supply Current <200 mA—per NMEA 2000®
Wireless Protocol Bluetooth Low Energy (BLE)
Wireless Range Up to 30 feet depending on mount location
Standard Cable Length 6 m (20') DeviceNet—NMEA 2000®
Temperature Sensor Accuracy +/-0.5°C (+/-1.8°F)
Temperature Sensor Range -10°C to 40°C (14°F to 104°F)
NMEA 2000 Load Equivalency Number (LEN) 3

What's in the Box:
  • DST-810 Insert
  • Bronze Housing
