Blue Sea Terminal Block 30a 8 Circuit
Blue Sea Terminal Block 30a 8 Circuit
Regular price
$12.69
Regular price
Sale price
$12.69
Unit price
per
Couldn't load pickup availability

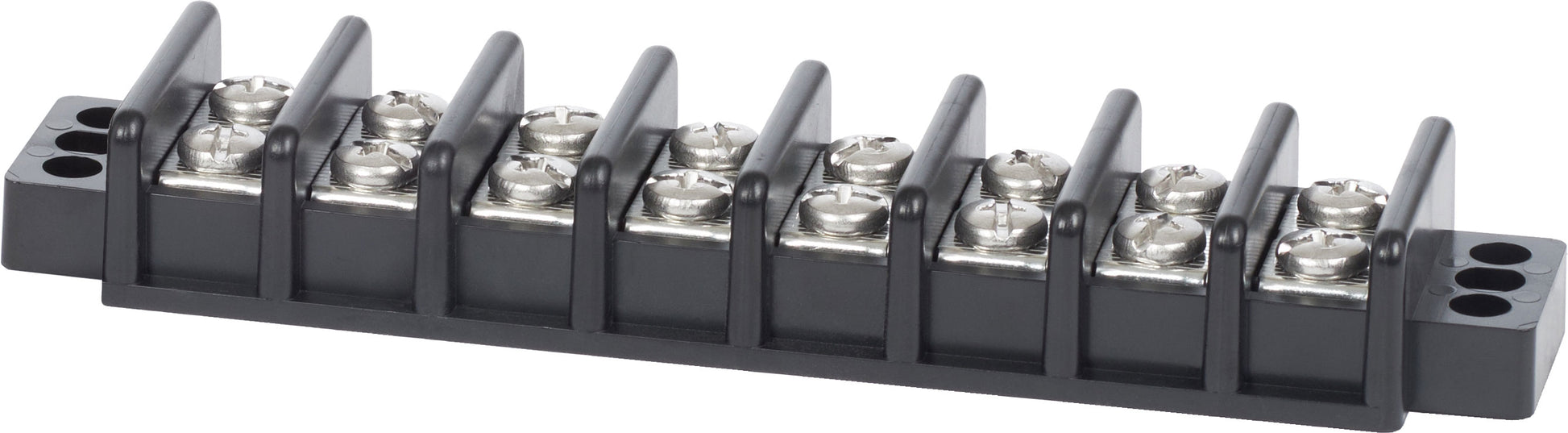

Blue Sea Systems Terminal Block 30A - 8 Circuit
Model: 2508-BSS- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
| Circuits | 8 |
| Length | 5.50in (139.7 mm) |
| Maximum Voltage | 600V AC/DC |
| Continuous Rating | 30A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #10 [M5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 10 in-lb (1.13 Nm) |
| Terminal Screws | M4 |
| Wire Terminal Size | #8 [M4] |
