Blue Sea Systems
Blue Sea Maxibus 250a Busbar Two 5/16""-18 Studs And Six #10-24 Screws
Blue Sea Maxibus 250a Busbar Two 5/16""-18 Studs And Six #10-24 Screws
Regular price
$66.86
Regular price
Sale price
$66.86
Unit price
per
Couldn't load pickup availability

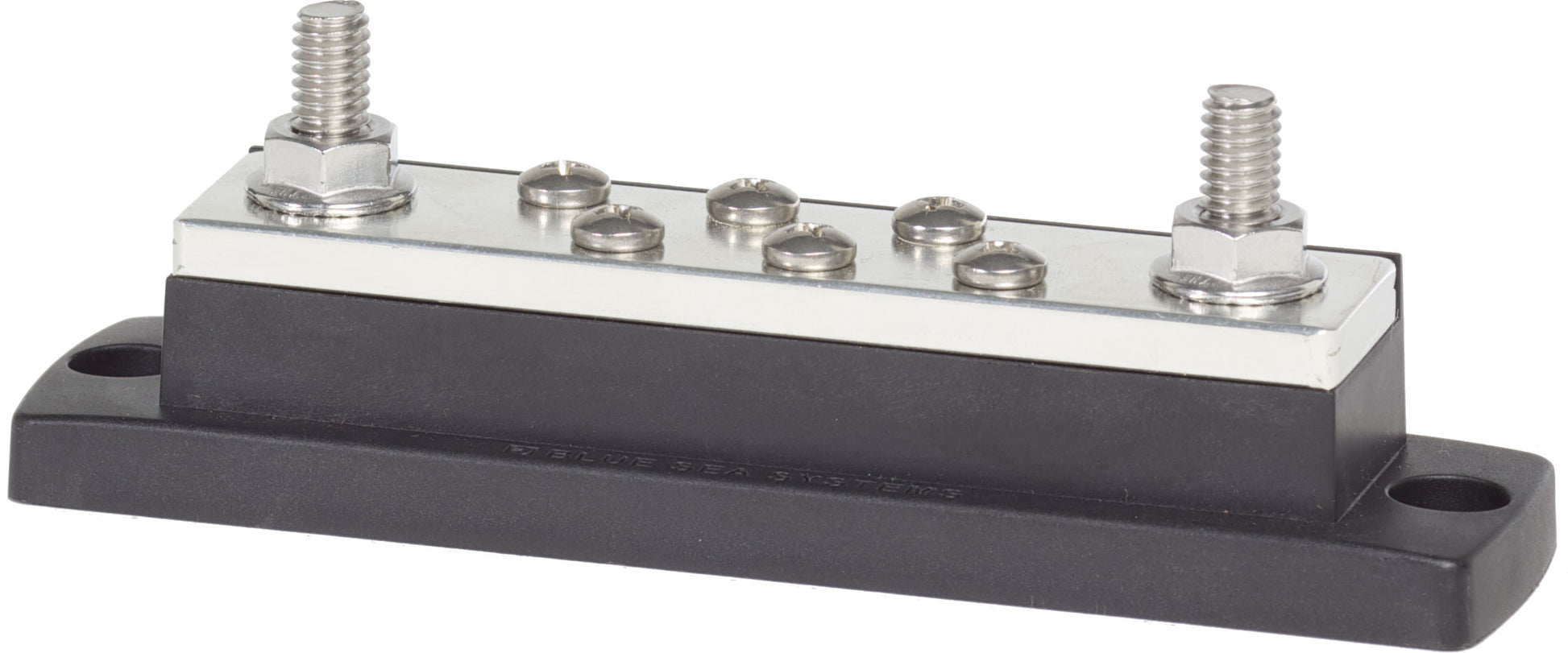

Blue Sea Systems MaxiBus 250A BusBar - Two 5/16""-18 Studs and Six #10-24 Screws
Model: 2128-BSS- Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
- Raised bus provides easy access to multiple wires on a single stud
- UL 94-V0 rated base material resists high heat
- Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
| Maximum Voltage | 300V AC, 48V DC |
| Number of Screw Terminals | 6 |
| Number of Terminal Studs | 2 |
| Terminal Type | #10-24 Screw, 5/16""-18 Stud |
| Continuous Rating | 250A |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Recommended Screw Torque | 23 in-lb (2.6 N m) |
| Recommended Stud Torque | 132 in-lb (14.91 N m) |
