Blue Sea Systems
Blue Sea Hd-series Battery Switch On/off 600a Alternator Field Disconnect
Blue Sea Hd-series Battery Switch On/off 600a Alternator Field Disconnect
Regular price
$151.00
Regular price
Sale price
$151.00
Unit price
per
Couldn't load pickup availability

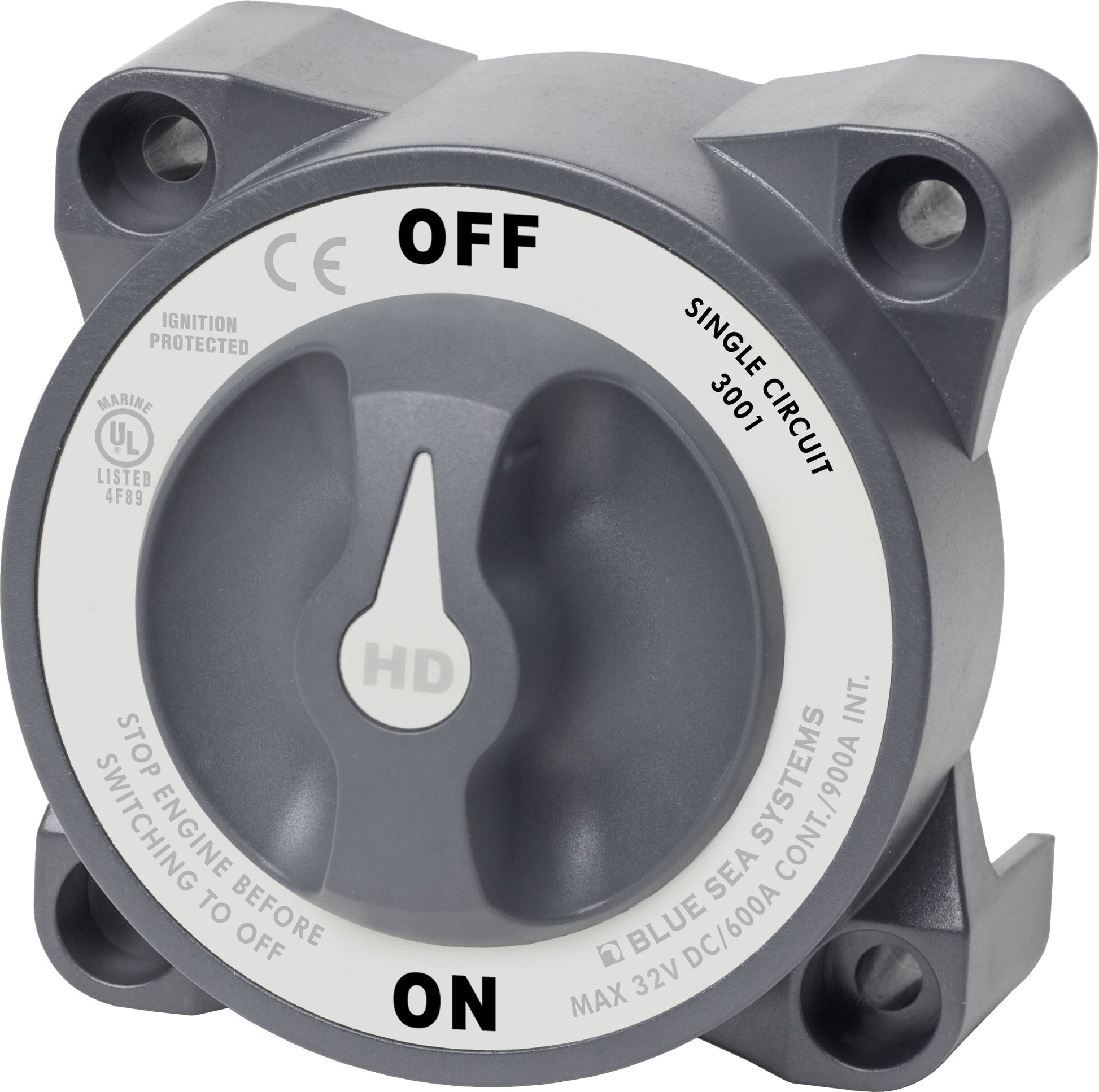

Blue Sea 3000 600A Battery Selector Switch On-Off with Alternator Field Disconnect
Model: 3001-BSS- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Accepts up to 4/0 AWG battery cables
- Studs accepts 1/2"" (M12) ring terminals
- 7/8"" (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Fits most Perko and Guest low amperage battery switch hole patterns
- Case design allows surface, rear, or front panel mounting options
- Tactile indicator conveys knob position by feel
- Waterproof — rated IP66 from water projected in powerful jets
- Ignition protected—safe for installation aboard gasoline powered boats
- Includes AFD (Alternator Field Disconnect)
| Switch Type | Single Circuit ON-OFF |
| Color | Grey |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | Yes |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque | 220 in-lb (24.86 Nm) |
| Continuous Rating | 600A |
| Intermittent Rating | 900A (5 min) |
| Cranking Rating 30 sec | 1750A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Quantity to Meet Ratings | Two Cables |
| Cable Size to Meet Ratings | 4/0 AWG (120mm ) |
| Mounting Holes | Accept 1/4"" (M6) Screw |
| Terminal Stud Size | 1/2"" (M12) |
