ACR Electronics
Acr Rcl85 White Led Spotlight With Wireless Hand Remote 240,000 Candela 12/24v
Acr Rcl85 White Led Spotlight With Wireless Hand Remote 240,000 Candela 12/24v

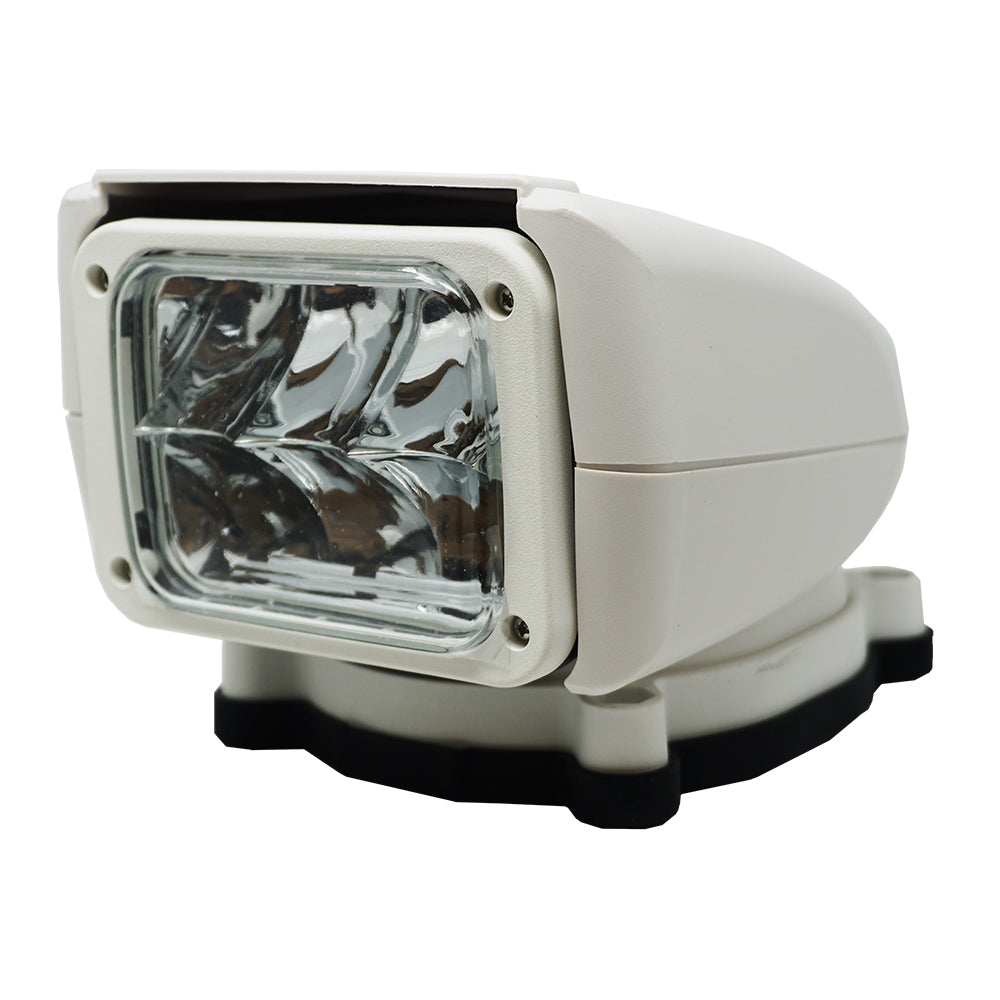

ACR RCL85 White LED Spotlight
With Wireless Hand Remote
Model: 1956- 6 High Flux LEDs (OSRAM)
- 240,000 Candela, Max Beam Distance 3,215 Feet (980 m)
- Wireless Handheld Remote (Included)
- 350o Rotation and 90o Tilt
- 2 Amps (12V) to 1.1 Amps (24V)
- Efficient, long life LED’s - 50,000 operating hours
- UV & Weather Resistant
- Simple Installation (12-24V Power Connection Only)
The all new RCL-85 LED searchlight was designed for the boater who wants to ditch the hassle of halogen searchlights, but still wants their affordability. With an impressive 240,000 candelas using 6 High Flux (30W) LEDs, you have visibility over ½ of a nautical mile to light the way to your destination. The simple installation only requires running your 12 to 24 volt power to the searchlight, all operations are completely wireless.
The RCL-85 LED’s sleek design makes it an attractive and cost-effective choice for small to medium sized recreational powerboats as well as light commercial vessels. This searchlight comes with a wireless handheld remote to rotate the light 350 degrees. With an 8 degree beam angle, the light can tilt an impressive 90 degrees to make lighting draw bridges, buoys and docks a breeze. Need to get some assistance, use the Strobe function to signal for help. The RCL-85 is weather resistant with the electronics located in the IP68 water-resistant light head instead of the base for increased protection. The ASA housing and lens are sealed against the elements for years of trouble-free operation.
SpecificationsACR Product Number | PN 1956 (White) |
Size | 5.5 x 6.3 x 7.7" (14 x 16 x 19.5 cm) |
Weight | 3.1 lbs (1.34 kg) (searchlight only) |
Color | White |
Operation | Remote controlled wireless handheld remote (included) / 433.92 MHz |
Peak Beam Candle Power | 240,000 |
Beam Maximum Distance | 3,215 Feet (980 Meters) |
Beam Pattern / Angle | Spot / 8o |
Elevation Angle | 90° |
Rotation | 350° |
Rotation Speed | 18o per second |
Elevation Speed | 13° per second |
Lamp | LED 30W (OSRAM x 6) / 50,000 hour life |
Accessories | Wireless Dash Mount Remote (PN 9635) |
Footprint Diameter | 5.03" x 4.09" (12.8 x 10.4 cm) |
Power Requirements | 12 or 24 V DC |
Warranty | 2 Years |
