Acr Rcl100 Led Searchlight With Point Pad 12/24v Black Housing
Acr Rcl100 Led Searchlight With Point Pad 12/24v Black Housing

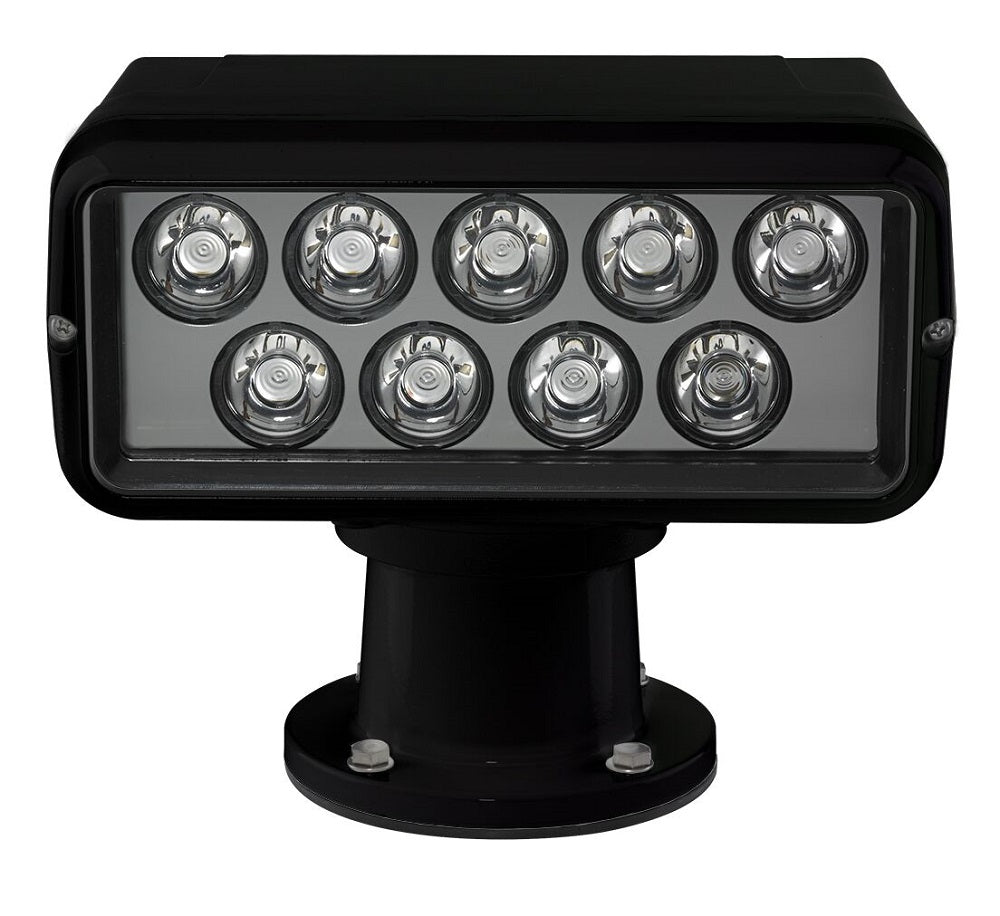

ACR RCL100 LED Spotlight with Wired Point Pad, Black Housing
Model: 1951.B- Ultra bright, 9 LED array generates over 200,000 peak candela
- Efficient, long life LED’s - 40,000 operating hours
- Controller has state-of-the-art electronics to protect light from most power surges
- Internal elevation mechanism for precise pitch control of beam; protects elevation mechanism from weather
- Rugged triple-primed and sealed, marine grade aluminum housing
- Exclusive XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
- Wiring harness of 15 feet (4.57 m)
- Two speed motor
- GF
The LED version of their most popular RCL-100D searchlight provides high intensity LED performance that pierces through night and low lighting conditions with a blazing 200,000 candela. The RCL-100 LED’s traditionally sleek design makes it an attractive and cost effective choice for sport yachts, mega-yachts, sport fishers as well as light commercial vessels. The RCL-100 LED continues to utilize the same rugged design as the original RCL-100, but incorporates a new efficient 9 LED array that produces over 200,000 candela of light. The die cast aluminum housing and glass lens are sealed against the elements for years of trouble-free operation. Other features include a remote control operation that allows users to rotate the light 360 degrees continuously at either a fast or slow speed without the hassle of a hard stop. With a 7 degree beam angle, the light also provides elevation angles at 9 degrees up and 17 degrees down to make lighting draw bridges, buoys and docks a breeze.
Not all searchlights are created equal. The die cast aluminum case is triple-primed and painted with UV stabilizer to withstand years of exposure in harsh marine environment. The light’s internal elevation mechanisms are fully enclosed and provide precise pitch control of the beam while staying protected. The LED bulbs are efficiently designed to provide over 40,000 operating hours. The light also includes their Exclusive XRCiZ™ feature that pre-programmed and allows for the light to independently rotate every 30 days from activation to insure all bearing surfaces are free of corrosion and all electrical contacts functional. The RCL-100 LED is completely weatherproof and is available with a weatherproof remote control and operates with 12 or 24 DC power.
SpecificationsMaterial | Aluminum Alloy Die Casting |
Color | White |
Operation | Wired Point Pad |
Beam Angle | 7 degree |
Elevation angle | 9 degree up 17 degrees down |
Rotation | Continuous 360 degrees |
Rotation Speed | Fast 31 degrees per second, slow 20 degrees per second |
Elevation speed | 2.8 degrees per second |
Lamp | High intensity LED (40,000 hour life) |
Accessories | Secondary Point Pad™ (P/N 9282.3) |
Input voltage | 12 or 24 V DC |
Peak beam candlepower | 200,000 |
Dimensions | 8 x 9 x 8 (20.3 x 22.9 x 20.3 cm) |
